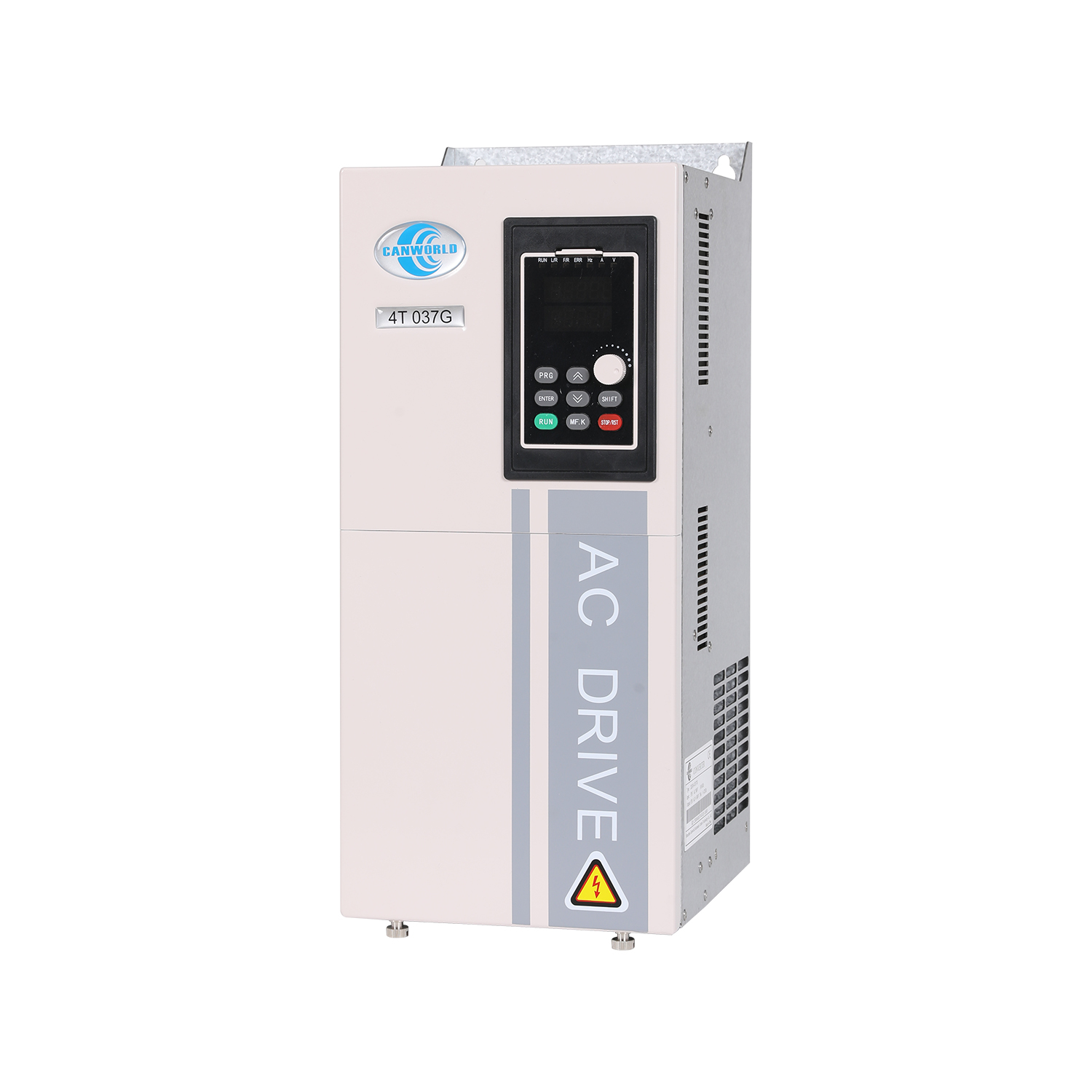

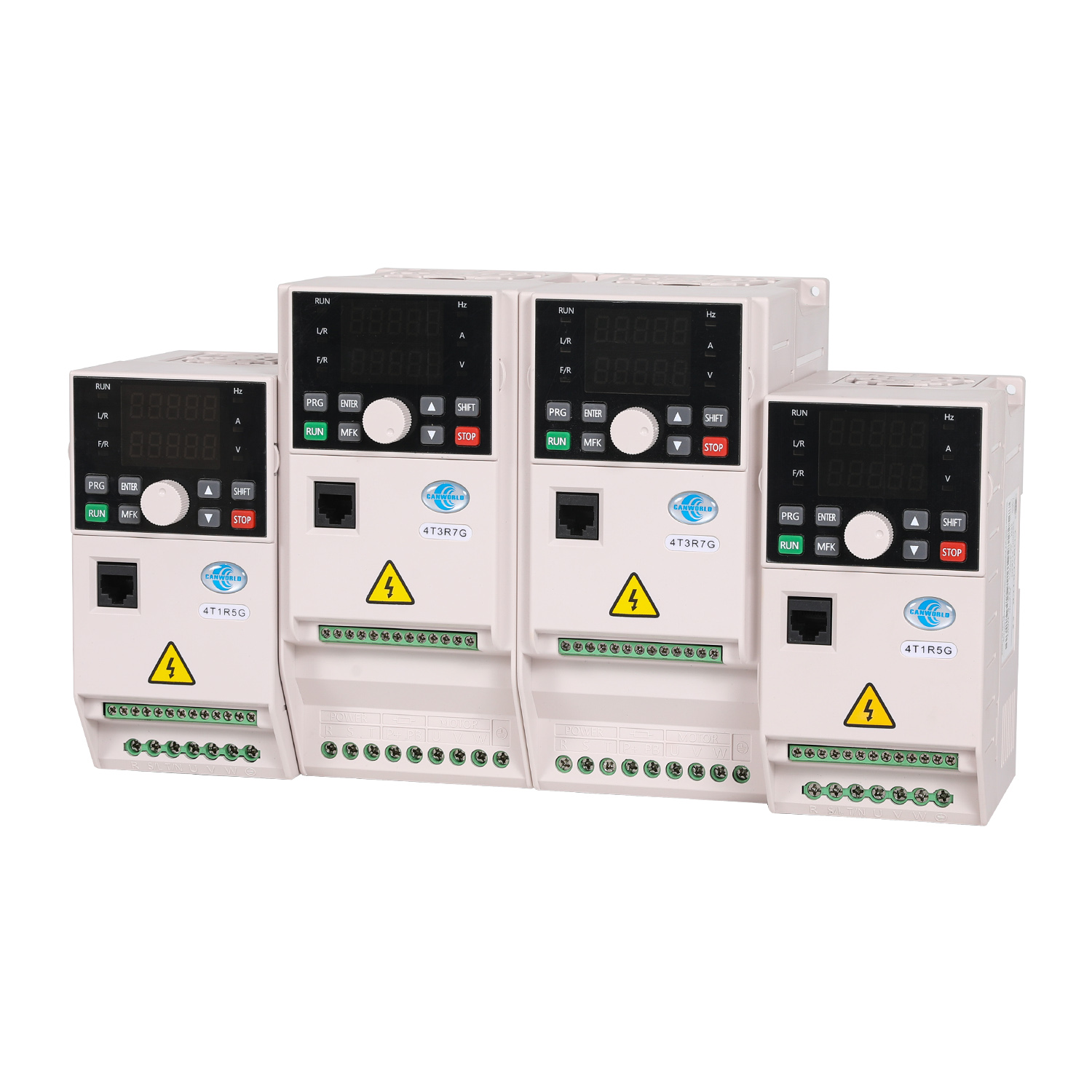

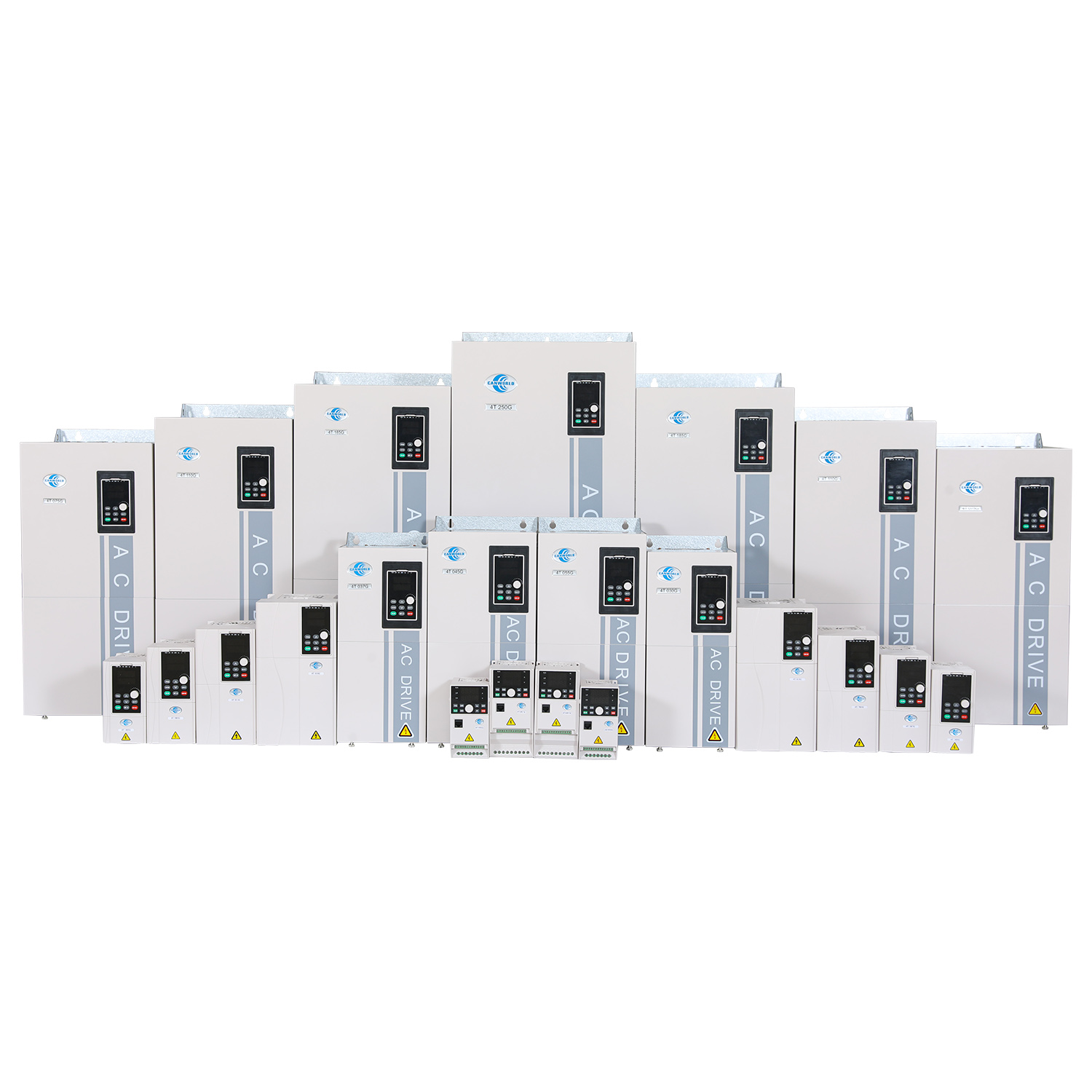

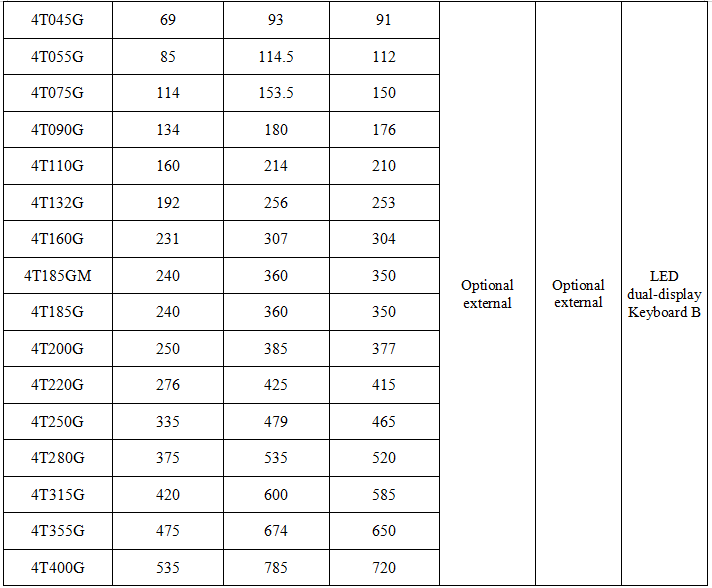

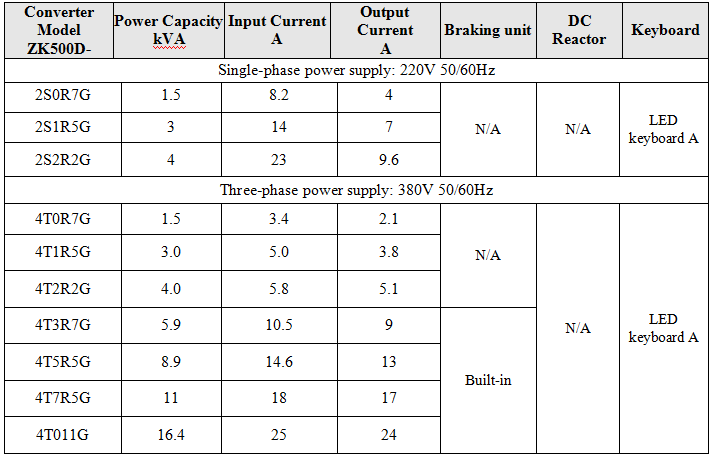

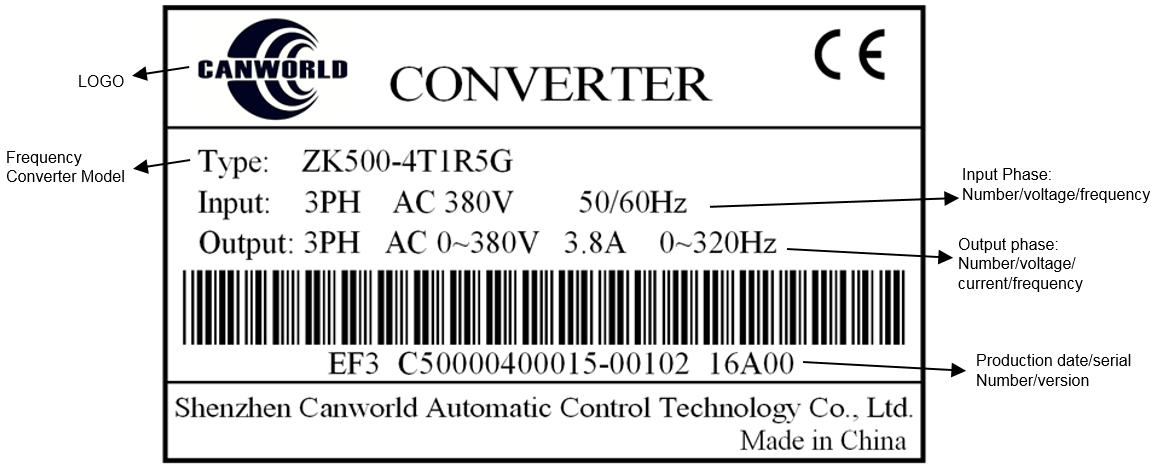

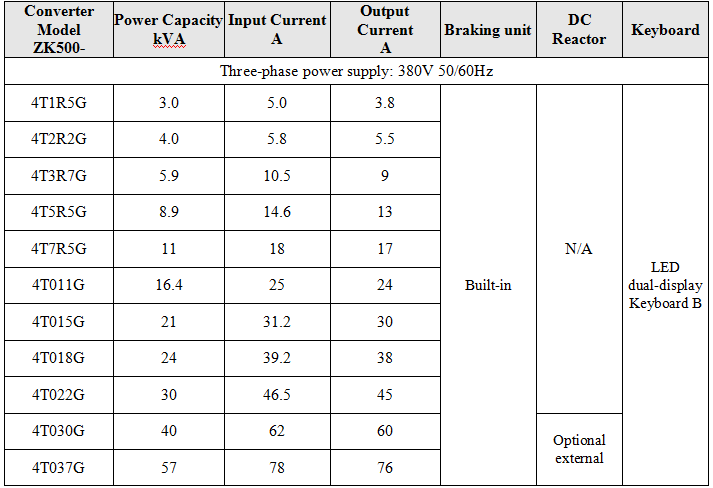

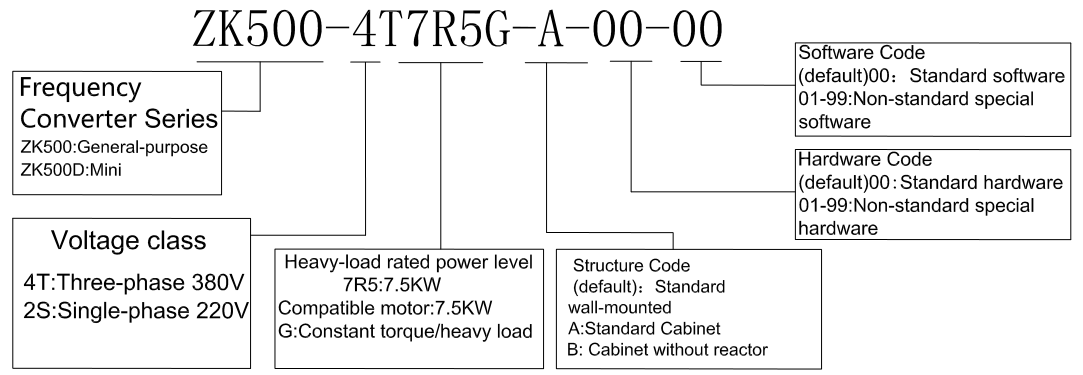

ZK500 series

Basic performance

Rated Input

Single-phase 220V, three-phase 380V;50/60Hz;

Input Voltage Range

Wave-15% to 10%; imbalance <3%; frequency 47 to 63Hz;

Control Mode

V/F control; open-loop vector control;

Frequency Resolution

The number is set to 0.01Hz;

Maximum Output

V/F control 3200Hz;

Speed Regulation Range

Vector control 1:100

Carrier Frequency

0.5~16.0kHz (maximum value depends on the model), which can be automatically adjusted according to the temperature.

Starting Torque

0.5Hz/150% motor rated torque

Overload Capacity

Type G machine: 150% rated current for 60s

basic function

Operation mode

Keyboard; Terminal (2-wire, 3-wire); Communication (RS485)
Different modes can be freely switched via digital input terminals.

V/F curve

Linear type; Multi-point V/F;

Acceleration and deceleration curve

Linear or S-curve; Four sets of acceleration/deceleration times (range: 0.0s–6500.0s)

Torque boost

Automatic torque boost; Manual torque boost.

Speed tracking

Speed tracking function is available across the full power range.

Motor braking

DC braking; Dynamic braking; Flux braking

DC Braking

Braking frequency: 0.00Hz–Max frequency; Braking time: 0.0–100.0s
Braking current: 0.0–100.0%

Flux Braking

Prevents frequent overvoltage protection in scenarios requiring fast stops or with energy feedback.

Overcurrent/Overvoltage Control

Automatic current and voltage limiting during operation to prevent frequent overcurrent and overvoltage protection.

special function

Terminal Delay

Switch input and output terminals can be set with response delay (0.0~6553.5s).

Jog Control

Control method: terminal, communication

Frequency: 0.00Hz~ maximum frequency; acceleration and deceleration time: 0.0~6500.0s

Multi-speed
Simple PLC

Up to 7 speeds can be achieved through built-in simple PLC or switching input terminals.

Built-in Two Sets of PID

When used as an ordinary PID, it can easily realize a closed-loop process control system.

Fixed Length, Counting

Pulse signals (0 - 50kHz) can be counted and matched with switching output terminals to achieve counting arrival control; the count value can also be converted into length for display and fixed length control.

Anti-swing Frequency Control

It can realize constant swing amplitude, constant mutation and constant period output at any frequency.

Timing Control

Timing controllable (0.0Min~6500.0Min)

Momentary Power Loss Ride-Through

When there is an instantaneous power outage, the frequency is reduced to reduce the load feedback energy compensation bus voltage, thereby maintaining the inverter from stopping for a short time.

Peripheral Terminals

Reference Power Supply

10V/20mA, generally used for analog input signal power supply.

Control Power Supply

24V/200mA, generally used for switching input and output terminal signal power supply.

Analog Input

2 analog input terminals for selecting voltage or current signal input.

Each channel supports two signal ranges: 0~10V, 0~20m, and 4~20mA.

Analog Output

2 analog output terminals for selecting voltage or current signal output.

Each channel supports two signal ranges: 0~10V, 0~20mA, and 4~20mA.

Switching value input

5 multifunctional switching input terminals.

Among them, the HDI terminal can be used for high-speed pulse (0~50kHz) input and is programmable.

Switching value output

2 open-collector output terminals; the HDO terminal can be used as high-speed pulse (0 to 50kHz) output and is programmable.

2 relay output terminals.

Protection

Common Types

Input and output phase missing, undervoltage, overvoltage, overcurrent, overheating, overload, short circuit, module failure, external failure, custom failure, etc.

Operating Environment

Location

Indoors, no direct sunlight.

Free from dust, dripping water, salt, oil mist, water vapor, combustible gases, corrosive gases, etc.

Altitude

When it is≤ 1000m, the inverter can be used normally under rated conditions;

When it is> 1000m, the amount will be reduced by 1% for every 100m increase;

When it is> 3000m, please seek technical advice from the manufacturer.

Temperature

-10℃~+40℃; When the ambient temperature is between 40℃~50℃, please maintain good ventilation and use derating: for every 1℃ increase, derating is 3%.

Humidity

< 95%RH, no water droplets condense.

Vibration

< 0.6g

Storage

Store at-25℃~+65℃.
