product description
The CDE800 series is a narrow-body, high-quality, multi-functional current vector control inverter in the Canworld Electric product series. It achieves rapid torque control through decoupling control of the motor flux current and torque current. The response and precise control enable wide range of speed regulation operation and torque control with high precision.
Application areas
Widely used in textile, papermaking, wire drawing, stone sawing, air compression, metallurgy, oil fields, lifting and other industries.
Features
>Two voltage levels, 380V/480V, are optional;
>The keyboard can be extended up to 1000 meters;
>4T030G/037L and below models have built-in braking unit (standard configuration);
>CDE800 series 30kW and above can be used on the same bus;
>The output frequency can reach 3500Hz (b2.07=1):
>CDE800 series 30kW and above are equipped with dual display keyboard as standard, and can choose to display 5 sets of parameter modes at the same time;
>Vector control has two modes: speed control and torque control;
>Wide voltage input: 380V voltage level inverter operating range 266V-440V;
>Multiple protections such as power-on ground detection and phase-to-phase short circuit (software and hardware protection);
>Control signal power supply: Both +10V and +24V external power supplies have short-circuit protection, +10V has a current output capability of 30mA, and +24V has a large current output capability of 200mA;
>High-speed pulse input, high-speed pulse output; >Speed tracking;
>Supports multi-pump control in variable frequency fixed mode and variable frequency cycle mode; a single machine can realize one-to-two, and an expansion card can be added to realize one-to-four.
Product Description

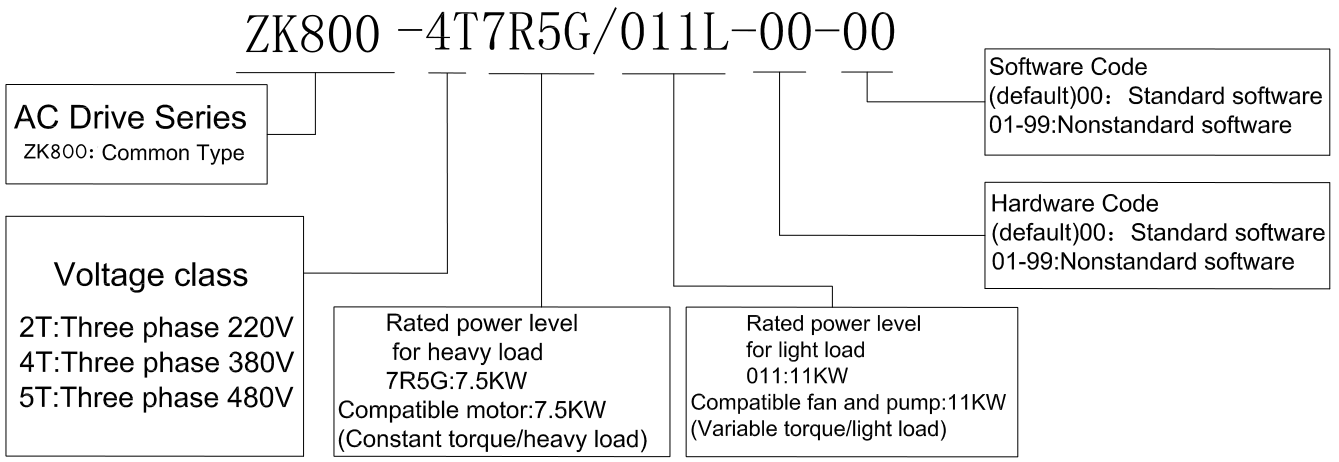

Inverter model CDE800- | battery capacity (kVA) | Input Current (A) | Output current (A) | brake unit | DC Reactor | keyboard |
2S0R7 | 1.5 | 8.2 | 4 | Standard configuration built-in | 无 | Standard LED keyboard |
2S1R5 | 3 | 14 | 7 | |||
2S2R2 | 4 | 23 | 9.6 |
Inverter model CDE800- | battery capacity (kVA) | Input Current (A) | Output current (A) | brake unit | DC Reactor | keyboard |
4T0R7G/1R5L | 2.0/3.0 | 3.4/5.0 | 2.6/3.8 | Standard built-in | no have | led keyboard |
4T1R5G/2R2L | 3.0/4.0 | 5.0/5.8 | 3.8/5.5 | |||
4T2R2G/3R7L | 4.0/5.9 | 5.8/10.5 | 5.5/9 | |||
4T3R7G/5R5L | 5.9/8.9 | 10.5/14.6 | 9/13 | |||
4T5R5G/7R5L | 8.9/11 | 14.6/18 | 13/17 | |||
4T7R5G/011L | 11/16.4 | 18/25 | 17/24 | |||
4T011G/015L | 16.4/21 | 25/31.2 | 24/30 | |||
4T015G/018L | 21/24 | 31.2/39.2 | 30/38 | |||
4T018G/022L | 24/30 | 39.2/46.5 | 38/45 | |||
4T022G/030L | 30/40 | 46.5/62 | 45/60 | |||
4T030G/037L | 40/57 | 62/78 | 60/76 | LED+ LCD dual display keyboard | ||
4T037G/045L | 57/69 | 78/93 | 76/91 | Optional External | ||
4T045G/055L | 69/85 | 93/114.5 | 91/112 | |||
4T055G/075L | 85/114 | 114.5/153.5 | 112/150 | Optional External | ||
4T075G/090L | 114/134 | 153.5/180 | 150/176 | |||
4T090G/110L | 134/160 | 180/214 | 176/210 | |||
4T110G/132L | 160/192 | 214/256 | 210/253 | |||
4T132G/160L | 192/231 | 256/307 | 253/304 | |||
4T160G/185L | 231/240 | 307/360 | 304/350 | |||
4T185G/200L | 240/250 | 360/385 | 350/377 | |||
4T200G/220L | 250/276 | 385/425 | 377/415 | |||
4T220G/250L | 276/335 | 425/479 | 415/465 | |||
4T250G/280L | 335/375 | 479/535 | 465/520 | |||
4T280G/315L | 375/420 | 535/600 | 520/585 | |||
4T315G/355L | 420/475 | 600/674 | 585/650 | |||
4T355G/400L | 475/535 | 674/785 | 650/720 | |||
4T400G/450L | 535/600 | 785/850 | 720/820 | |||
4T450G/500L | 600/670 | 850/930 | 820/890 | |||
4T500G/560L | 670/750 | 930/1055 | 890/1000 | |||
4T560G/630L | 750/840 | 1055/1155 | 1000/1120 | |||
4T630G/710L | 840/947 | 1155/1310 | 1120/1270 | |||
4T710G/800L | 947/1067 | 1310/1475 | 1270/1430 | |||
4T800G/900L | 1067/1133 | 1475/1575 | 1430/1520 | Standard configuration built-in | ||
4T900G/1000L | 1200/1334 | 1668/1850 | 1610/1790 | |||
4T1000G | 1334 | 1850 | 1790 |
Inverter model CDE800- | battery capacity (kVA) | Input Current (A) | Output current (A) | brake unit | DC Reactor | keyboard |
5T1R5G/2R2L | 3.0/4.0 | 5.0/5.8 | 3.8/5.5 | Standard built-in | no have | led keyboard |
5T2R2G/3R7L | 4.0/5.9 | 5.8/10.5 | 5.5/9 | |||
5T3R7G/5R5L | 5.9/8.9 | 10.5/14.6 | 9/13 | |||
5T5R5G/7R5L | 8.9/11 | 14.6/18 | 13/17 | |||
5T7R5G/011L | 11/16.4 | 18/25 | 17/24 | |||
5T011G/015L | 16.4/21 | 25/31.2 | 24/30 | |||
5T015G/018L | 21/24 | 31.2/39.2 | 30/38 | |||
5T018G/022L | 24/30 | 39.2/46.5 | 38/45 | |||
5T022G/030L | 30/40 | 46.5/62 | 45/60 | |||
5T030G/037L | 40/57 | 62/78 | 60/76 | LED+ LCD dual display keyboard | ||
5T037G/045L | 57/69 | 78/93 | 76/91 | Optional External | ||
5T045G/055L | 69/85 | 93/114.5 | 91/112 | |||
5T055G/075L | 85/114 | 114.5/153.5 | 112/150 | Optional External | ||
5T075G/090L | 114/134 | 153.5/180 | 150/176 | |||
5T090G/110L | 134/160 | 180/214 | 176/210 | |||
5T110G/132L | 160/192 | 214/256 | 210/253 | |||
5T132G/160L | 192/231 | 256/307 | 253/304 | |||
5T160G/185L | 231/240 | 307/360 | 304/350 | |||
5T185G/200L | 240/250 | 360/385 | 350/377 | |||
5T200G/220L | 250/276 | 385/425 | 377/415 | |||
5T220G/250L | 276/335 | 425/479 | 415/465 | |||
5T250G/280L | 335/375 | 479/535 | 465/520 | |||
5T280G/315L | 375/420 | 535/600 | 520/585 | |||
5T315G/355L | 420/475 | 600/674 | 585/650 | |||
5T355G/400L | 475/535 | 674/785 | 650/720 | |||
5T400G/450L | 535/600 | 785/850 | 720/820 | |||
5T450G/500L | 600/670 | 850/930 | 820/890 | |||
5T500G/560L | 670/750 | 930/1055 | 890/1000 | |||
5T560G/630L | 750/840 | 1055/1155 | 1000/1120 | |||
5T630G/710L | 840/947 | 1155/1310 | 1120/1270 | |||
5T710G/800L | 947/1067 | 1310/1475 | 1270/1430 | |||
5T800G/900L | 1067/1133 | 1475/1575 | 1430/1520 | Standard configuration built-in | ||
5T900G/1000L | 1200/1334 | 1668/1850 | 1610/1790 | |||
5T1000G | 1334 | 1850 | 1790 |
